Traffic lane treatment examples
|
|
| |
|
| - Let’s take a look at traffic lane treatment in the "Left-right
off ramp - right merge - Non-Stop Interchange" in a 4-lane one-way
traffic road. |
|
| |
|
 |
|
| |
|
- The traffic lane treatment described in the homepage is only one
example of lane treatment in a 4-lane road.
|
|
| |
|
| - Please be reminded that "left-right off ramp - right
merge Non-Stop Interchange" can be connected to conventional
intersections. |
|
| |
|
 -

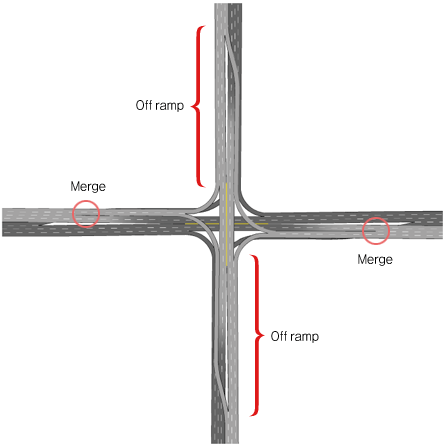

This is shown in the above diagram. |
|
| |
|
 |
 |
| Straight 2, Left 1, Right 1 |
Left 1, Straight 2, Right 1 |
| Merge |
Off ramp |
|
|
| |
|
 |
|
| |
|
 |
 |
 |
Straight 3, Left 1,
Right (taper) |
Left (pocket) Straight 3,
Right 1 |
Left 1, Straight 3,
Right (pocket) |
| Merge |
Off ramp |
|
|
| |
|
 |
|
| |
|
 |
 |
| Straight 4, Left (taper), Right (taper) |
Left (pocket), Straight 4, Right (pocket) |
| Merge |
Off ramp |
|
|
| |
|
| |
|
